Description:

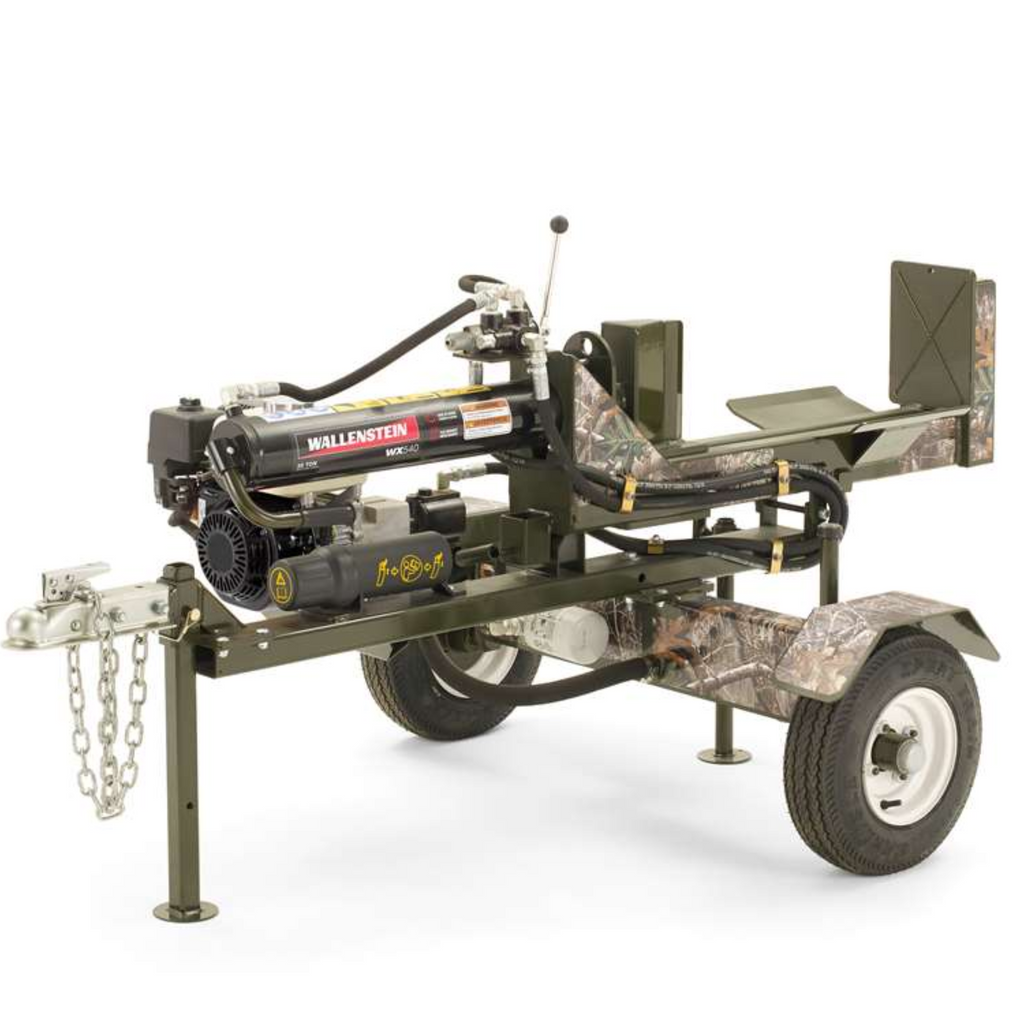

The WX540 Wallenstein Trailer Log Splitter is a powerful and versatile machine designed to handle wood up to 24 inches long. Powered by a Honda GX160 engine, it delivers dependable splitting force and ensures fast and efficient workflow. Here are the key specifications and highlights:

Specifications:

• Engine Model: 160 CC Honda GX160
• Bed Height: 24 inches
• Cylinder Diameter: 4 inches
• Cylinder Stroke: 24 inches
• Splitting Force @ 3000 PSI: 20 Ton
• Splitter Orientation: Horizontal and Vertical
• Average Stroke Cycle Time: Approximately 6.62 seconds
• Full Stroke Cycle Time: Approximately 13.24 seconds
• Weight: 470 lbs
• Dimensions (LxWxH): 80 inches x 48 inches x 40 inches
• Tire Size: 4.80 x 8
• Hitch Type: 2-inch Ball

Highlights:

• Hands-Free Return - Auto Neutral: The splitting wedge automatically returns to the start position, allowing you to prepare the next piece for splitting without manual intervention.
• 9-inch Wedge Height: The splitter can handle logs up to 9 inches in diameter, saving time by splitting larger pieces in one go.
• Ball Hitch & Safety Chains: Equipped with a 2-inch ball hitch for easy towing and safety chains for secure transportation.
• Direct Pressure: Delivers powerful splitting force for efficient log splitting.
• Two-Stage Hydraulic Pump: Provides a flow rate of 11 gallons per minute for smooth and consistent operation.
• Wallenstein Quality: Wallenstein's forestry equipment is known for its durability and efficiency, offering the best value for your investment.

With its robust construction and reliable performance, the WX540 Wallenstein Trailer Log Splitter is an ideal choice for rental businesses, cottage owners, and property maintenance tasks.
